LMR-195

LMR®-195 50 Ohms coax cable with UV Resistant jacket. Great drop-in replacement for RG-58 and RG-142 cables. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable.

Stock Code: 54110

LMR-195 Standard cable, Black PE jacket

Inventory Status
In Stock Qty Order
Mouser Electronics324Buy
DigiKey2680Buy

Specifications

Part NumberLMR-195
Environment
JacketPE
Overall Diameter (mm)4.953
Overall Diameter (in)0.195
Weight Kg/m0.0313
Weight lb/ft0.021
Operating Temp.°C (°F)-40° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)12.7
Min. Bend Radius (in)0.5
Bending Moment (Nm)0.27134142
Bending Moment (ft-lb)0.2
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-195-NMH-X TC-195-NMH-RA-D TC-195-SM-SS-X EZ-195-200-4310M-X EZ-195-200-4310M-RA-X EZ-195-BM-X EZ-195-200-716M-X EZ-195-200-716M-RA-X EZ-195-200-NF-X EZ-195-NF-BH-X EZ-195-NMH-X EZ-195-QF-X EZ-195-QM-X EZ-195-200-QNF-X EZ-195-200-QNM-RA-X EZ-195-200-SF-X EZ-195-SM-X EZ-195-SM-RA-X EZ-195-200-TF-BH-X EZ-195-TM-X EZ-195-TF-RP-X EZ-195-TM-RP-X EZ-195-200-UM-X EZ-195-200-UM-RA-X EZ-195-200-NF-BH-X EZ-195-200-TM-RA-X TC-195-FMEF-X

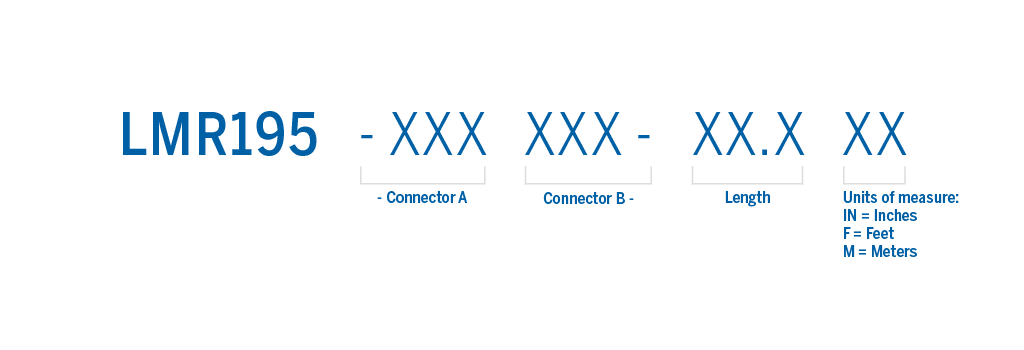

Part Number Structure

Part number structure

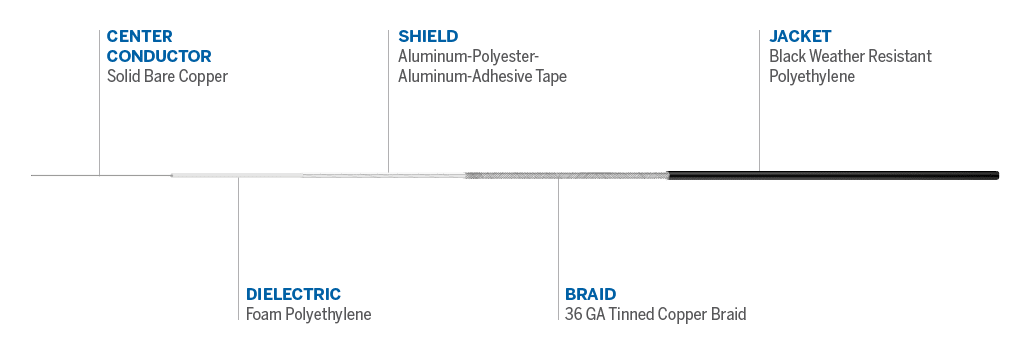

Cable Details

Cable details

Tools and Accessories

CST-195

CST-195
Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots
Grounding Kits

Grounding Kits
CCT-03

CCT-03

Documentation

LMR Guide

Download
