Clarity 50

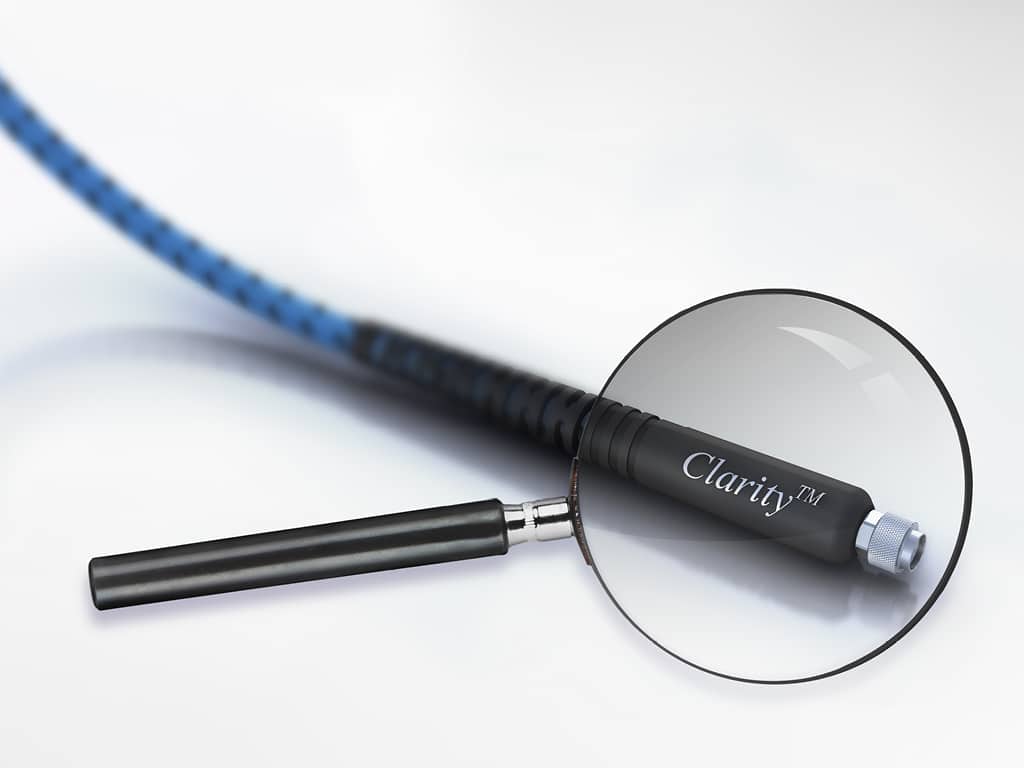

Clarity™ 50 test cable boasts steel torque crush and overbend protection with abrasion resistance - without compromising flexibility. The cable is ultra-stable through 50 GHz with exceptionally low attenuation. The design includes an ergonomic, injection-molded strain relief and Times' SureGrip™ coupling nut.

Stock Code: 52115-P

Clarity 50 ghz (armored only)

Inventory Status
In Stock Qty Order

Specifications

Overall Diameter (in)0.29
Overall Diameter (mm)7.95
Min. Bend Radius (in.)1.5
Min. Bend Radius (mm)38
Flex Life50000
Crushing Force (lbs/lin.in)200
Mating Lifecycle5000
Operating Temp.°C (°F)-55° to 125°C (-67° to 257°F)
Velocity of Propagation (%)70
Shielding Effectiveness (dB)>100
Capacitance (pF/ft)29
Capacitance (pF/m)95
Nominal Attenuation1.642(dB/ft)
Nominal Attenuation5.006(dB/m)
Amplitude Stability (dB)+/-0.08
Phase Stability (deg)+/-4.0
Power Handling (DWV)13
Max Frequency (GHz)50

Compatible with

CL-050-24M CL-050-24F CL-050-24FR CL-050-18M CL-050-18FR CL-050-KM

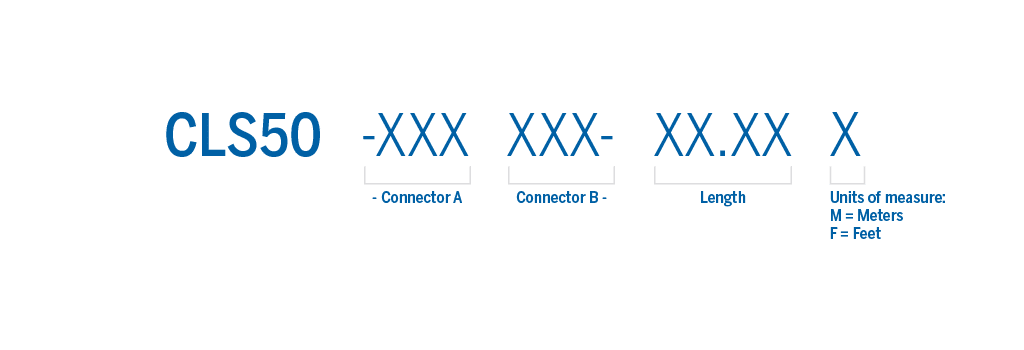

Part Number Structure

Part number structure

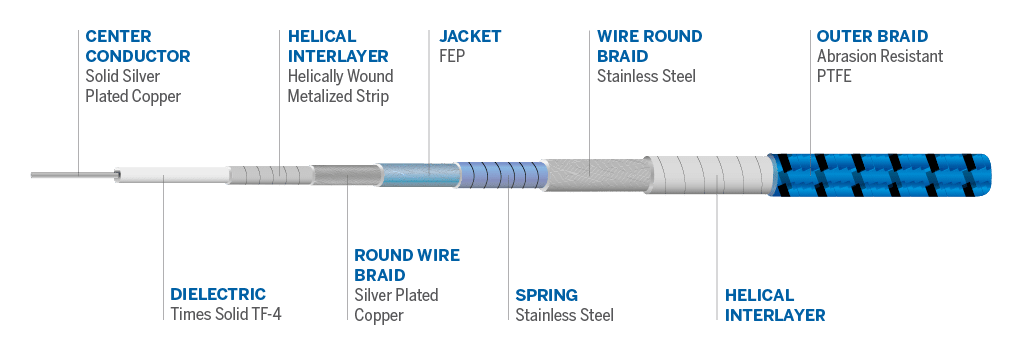

Cable Details

Cable details

Documentation

Test and Measurement Brochure

Test and Measurement Brochure

Selecting the right RF test assembly can be challenging, but understanding your specific application needs can make it easier. Explore our full range of RF test assemblies, designed to meet the most demanding requirements and ensure reliability and performance in every application.

Featured Products:

Clarity™ Series Test Cables: Clarity Series test cables provide industry-leading performance with broad frequency response, rugged durability, and phase stability over temperature. They are available in models that ensure ultra-stable performance up to 110 GHz, featuring steel torque crush and overbend protection with abrasion resistance. These cables include ergonomic strain relief designs and Times' SureGrip™ coupling nuts. SilverLine® Test Cables: SilverLine Test Cables are cost-effective, durable assemblies designed for a broad range of test and interconnect applications. Fabricated from rugged, solid PTFE dielectric cable with stainless steel connectors and a proven strain relief system, these cables provide long life and excellent stability in applications where they are repeatedly flexed and mated/unmated.

Applications:

  • Research & Development Labs
  • High Volume Production Testing
  • 5G Development
  • RF Module Testing
  • System Level RF Connection and Interconnects
