Clarity 70

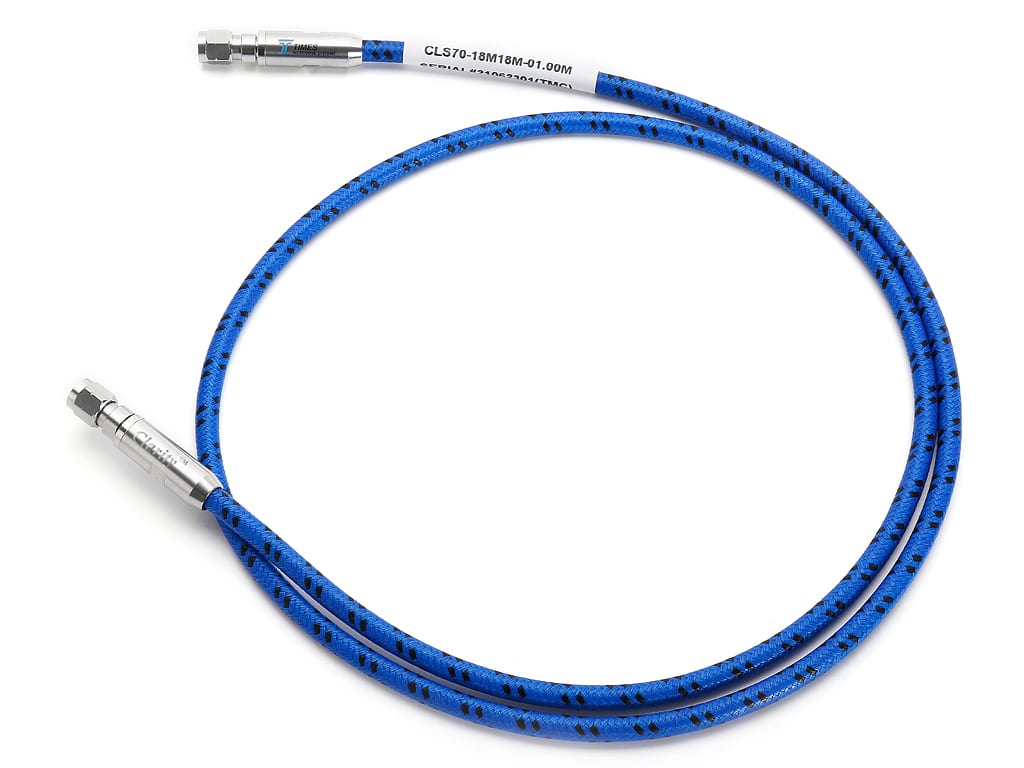

The Clarity ™ 70 test cable boasts steel torque crush and overbend protection with abrasion resistance - without compromising flexibility. The cable is ultra-stable through 70 GHz with exceptionally low attenuation. The design includes an ergonomic, stainless steel protective barrel strain relief and a hex coupling nut.

Stock Code: 170133

Clarity 70 GHz armored

Inventory Status
In Stock Qty Order

Specifications

Overall Diameter (in)0.2
Overall Diameter (mm)5.08
Min. Bend Radius (in.)1
Min. Bend Radius (mm)25.4
Flex Life>50000
Crushing Force (lbs/lin.in)200
Mating Lifecycle5000
Operating Temp.°C (°F)-55° to 150°C (-67° to 302°F)
Velocity of Propagation (%)80
Shielding Effectiveness (dB)>90
Capacitance (pF/ft)24.6
Capacitance (pF/m)80.7
Nominal Attenuation1.62(dB/ft)
Nominal Attenuation4.93(dB/m)
Amplitude Stability (dB)+/-0.10
Phase Stability (deg)+/-5
Power Handling (DWV)8
Max Frequency (GHz)70

Part Number Structure

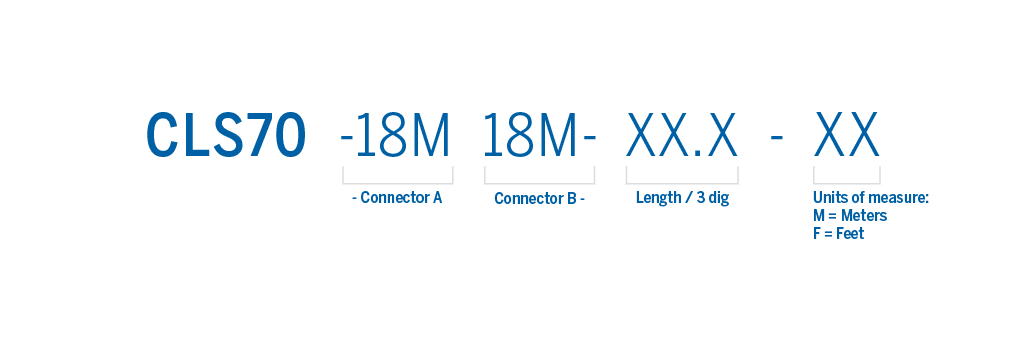

Part number structure

Cable Details

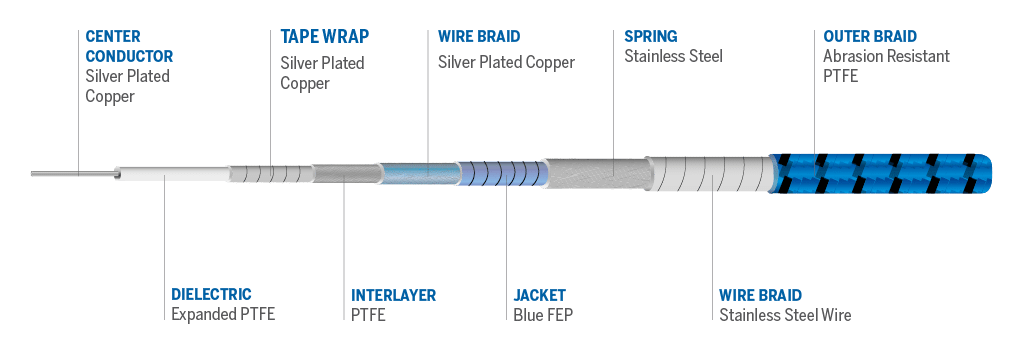

Cable details
